20L Jacketed Glass Reactor, Chemical Lab Reaction Vessel Device for Reaction Distillation with Stainless Steel Support Frame and Wheels Adjustable Speed 50-500RPM

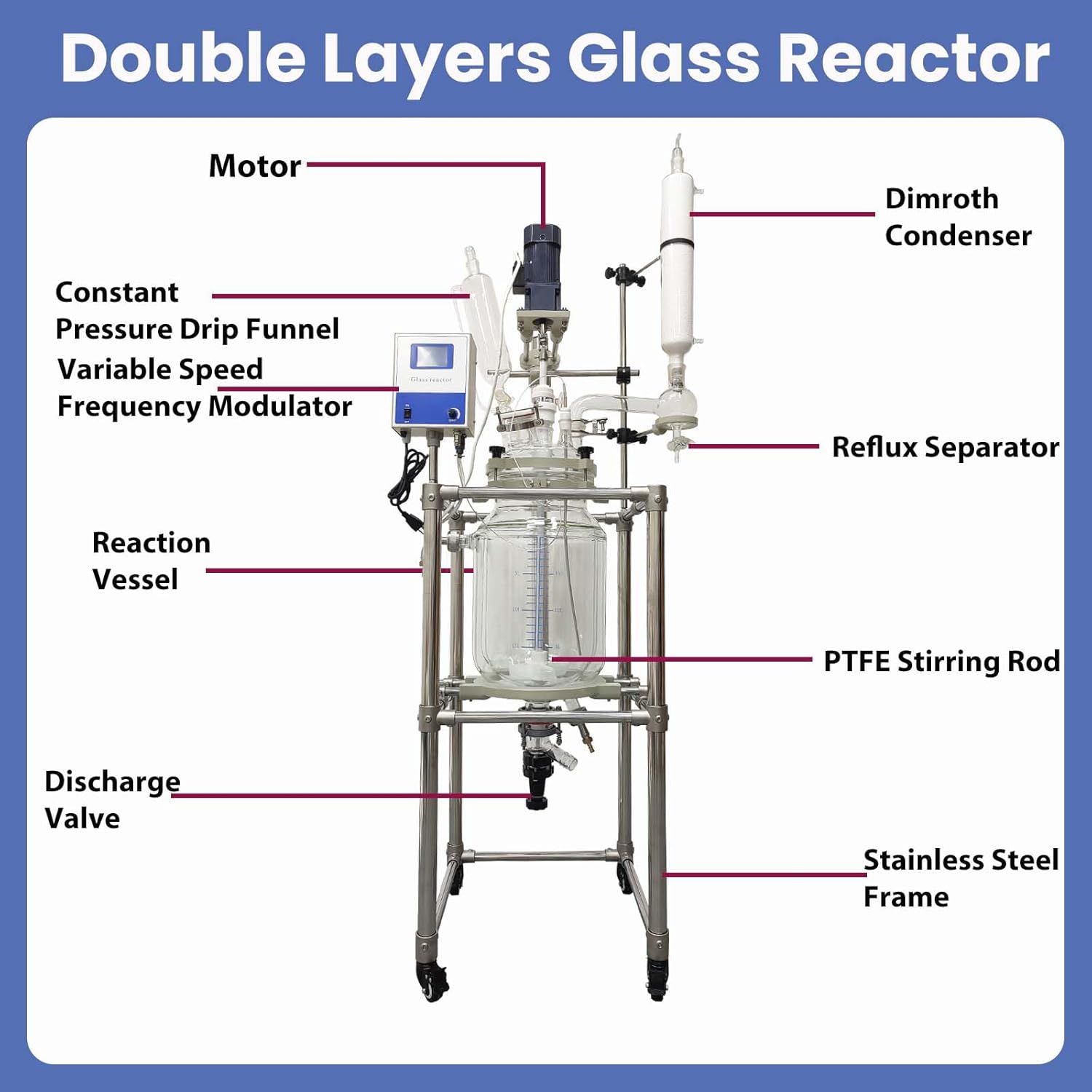

Parameters Voltage: 110V60Hz Power: 120W Rotary speed：50-500 rpm Frequency Control Frame material: stainless steel Main material: GG-17 high borosilicate glass Considerations 1. Serious stain glass pieces available dilute sulfuric acid cleaning.　　　 2. Check the degree of wear of the sealing ring (corrosion), and replacement of wearing part in time, to ensure the vacuum degree of the equipment.　　　 3. Cleaning PTFE discharge valve frequently. To avoid blinding and pollution to the material. 4. Be careful to the disassembly , clean and movement of the equipment. 5. Users shall take appropriate security measures when you are in the process of reaction about flammable, explosive, toxic, corrosive or valuable. 6. Precious materials, there must be a test to make sure the equipment is suitable for requirements. 7. Power off when the reaction is completed. Main Components PTFE stirring rod---1 SET PTFE discharging valve---1 SET Rotating mixing and sealing systems---1 SET Condenser---1 SET Constant pressure funnel---1 SET Stainless steel frame structure---1 SET Controller---1 SET Motor---1 SET Double-layer glass reactor kettle---1SET Item Number: 220567

• 【Instruction】- The inner container of the double-layer glass reactor can accommodate reaction materials while undergoing vacuum pumping and rapid stirring. The interlayer can be introduced into the freezing liquid, water, and high-temperature liquid to heat and cool the material.
• 【High Quality Materials】 - The jacket reactor uses borosilicate glass, which has excellent physical and chemical properties. The overall structure adopts stainless steel frame, which is compact and sturdy. Equipped with wheels and brake for easy movement.
• 【Stirring Rod】- The material of the stirring rod is stainless steel, and the stirring rod is wrapped with polytetrafluoroethylene skin to prevent corrosion by acid and alkali substances. The reactor body is made of high borosilicate glass, which has excellent chemical and physical properties. The transparent bottle is easy to observe the reaction liquid substances.
• 【Digital Display】- The digital display can monitor speed in real-time; Adopting stepless speed regulation, the speed can be adjusted from 50-500rpm, and the speed is displayed in real-time. Deceleration stirrer, smooth operation; high torque; no spark.
• 【Application】- The glass reactor is used for experimentation, pilot testing, and production of new materials in chemistry, fine chemistry, and biopharmaceuticals. This product can be combined with a multi-purpose vacuum pump for circulating water, a circulating cooler, a constant temperature circulator, a low-temperature coolant circulation pump, and a closed refrigeration heating circulation device (also known as a high and low temperature circulation device).
