Fuhuihe MPPT Solar Charge Controller 150V PV Solar Panel Controller Negative Ground W/ MT50 Remote Meter + Temperature Sensor +PC Monitoring Cable[Tracer4215BN+MT50+RTS+150U]

EPEVER MPPT Solar Charge Controller 40 Ampere Tracer 4215BNProlong The Life Of Your Battery by using this 40A MPPT ChargerThe smart battery protection system shields your device from getting over charged, over load, discharge, over heated, reverses polarity and also provides efficient short circuit protection.It can handle 520W Solar Panel on 12v battery system or 1040W Solar Panel on 24v battery system. Works equally great for home, industrial or commercial use. Designed for optimum and safe charging performance.Technical Data40A MPPT Charge Controller Nominal System Voltage: 12V, 24VRated Charge Current: 40ARated Load Current: 20AMax PV Open Circuit Voltage: 150V / 138VMax PV Input Power: 520W (12v battery) / 1040W (24v battery)Recommended Power Input: 600W (12v battery) / 1200W (24v battery)Recommended value for LiFePO4 batteries (12.8V / 4 cells in series)Boost Duration 120 sec.Temp. Compensation Coefficient:0Over Volt. Disconnect (V): 15.6VOver Volt. Reconnect (V): 14.7VEqualize Charging Volt. (V): N/ABoost Charging Volt.(V): 14.5VBoost Reconnect Charge Volt.(V): 13.2VCharging Limit Voltage (V): 14.6VDischarging Limit Volt. (V):10.6VLow Voltage Disconnect Volt. (V): 11.1Low Voltage Reconnect Volt. (V): 12.8Under Vol. Warning Volt.(V):12.0Under Voltage Warning Reconnect Volt. (V): 12.8

• Negative Grounding MPPT Solar Charge Controller Tracer4215BN, The Advanced MPPT Control Algorithm makes this 40 Amp MPPT Controller Tracking Efficiency higher than 99.5%
• 150V Max PV Input Allow this Charge Controller Handles More Solar Panels Wiring in Series to minimize PV current, 5 x 12V Solar Panel Connecting in Series will be applicable
• Work with all Lead Acid Batteries, Sealed AGM GEL and Flooded Battery, User mode allows buyer setting their own charging parameters for Lithium Batteries (LiFePO4)
• 4215BN Solar Regulator works with 600W Solar Panel on 12V Battery System and 1200W on 24V Battery. Max Solar Panel 1560W, multiple load mode allow you set the load on/off in different situation. A Solid State Relay is recommended if you are using a Power Inverter

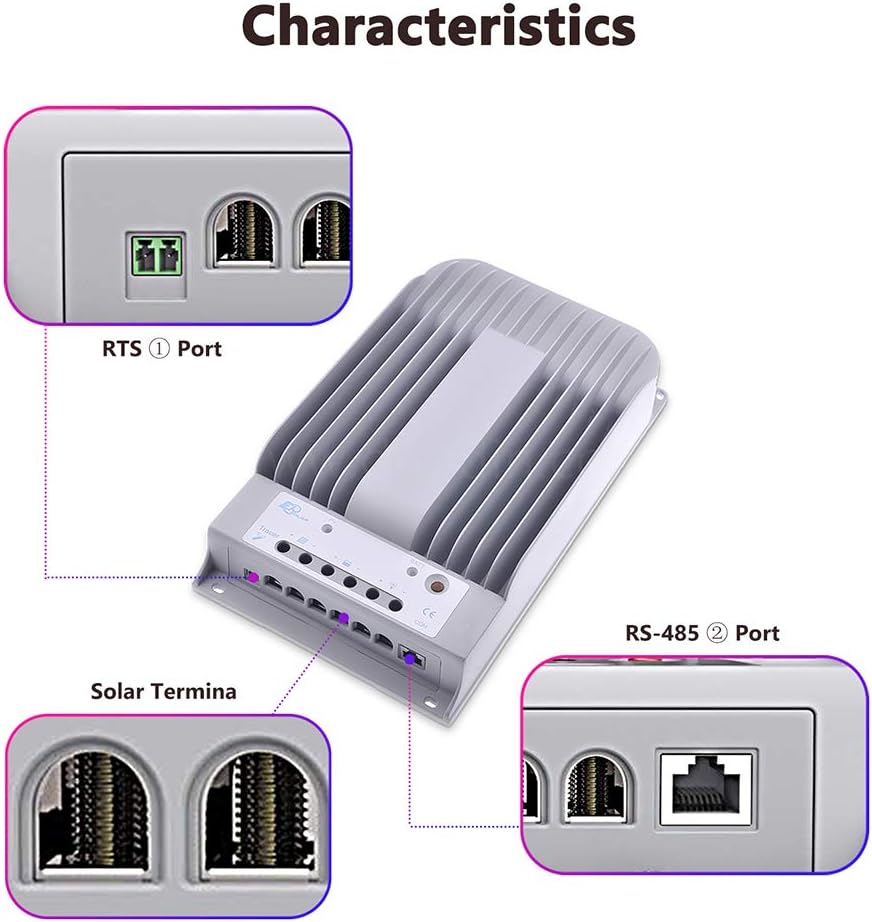

• RS-485 communication bus interface and Standard MODBUS interface available to meet various communication requirements, Temperature Sensor and PC monitoring Cable Attached
