INTSUPERMAI Universal Tool Grinder Machine GD-600 Sharpens Metal Tools with 50K Fixture & Dual Rotating Wheels Cast Iron Workbench for Drill Bits, Taps, Mills, Counterbores 220V

Product parameters Voltage: 220V Power: 0.55KW Speed: 2800 RPM Main material: cast iron Left and right stroke of workbench: 270mm(10.63") Front and rear travel of workbench: 150mm (5.91") Workbench area: 130 x 550mm (5.12"x21.65") Grinding wheel head lifting distance: 250mm (9.84") Grinding wheel head rotation angle: 360 ° Grinding wheel size: 125 x 50 x 32mm(4.92"x1.97"x1.26")

• 【 Cast Iron Body 】 The main structure of this grinding machine is made of FC300 high-strength cast iron. The bed is stable and can effectively reduce vibration. In combination with the high-precision linear guide worktable, it ensures the long-term stability of grinding accuracy.
• 【 Double Grinding Wheel 】 The grinding wheel head can rotate 360 degrees, and grinding wheels of different materials or for different purposes have been installed on both sides. When switching grinding tasks, simply rotate the grinding wheel head to use the grinding wheel on the other side. There is no need to disassemble or assemble it, which saves time and is safer. This enhances safety while significantly reducing wheel changing time and wear.
• 【 Simple Operation 】 The workbench area is 130x550mm, with a left-right travel of 270mm and a front-back travel of 150mm. There is ample workspace. The included center positioner is clearly marked for rapid positioning, providing ample space and flexibility for clamping tools of various sizes and angles.
• 【 Strong Motor Power 】 Equipped with a 550W motor with a rotational speed of 2800 revolutions per minute, it offers sufficient power and smooth operation. The motor has a reversible rotation function. The switch controls forward rotation, reverse rotation and stop, allowing you to control the grinding process of different materials and tool types.

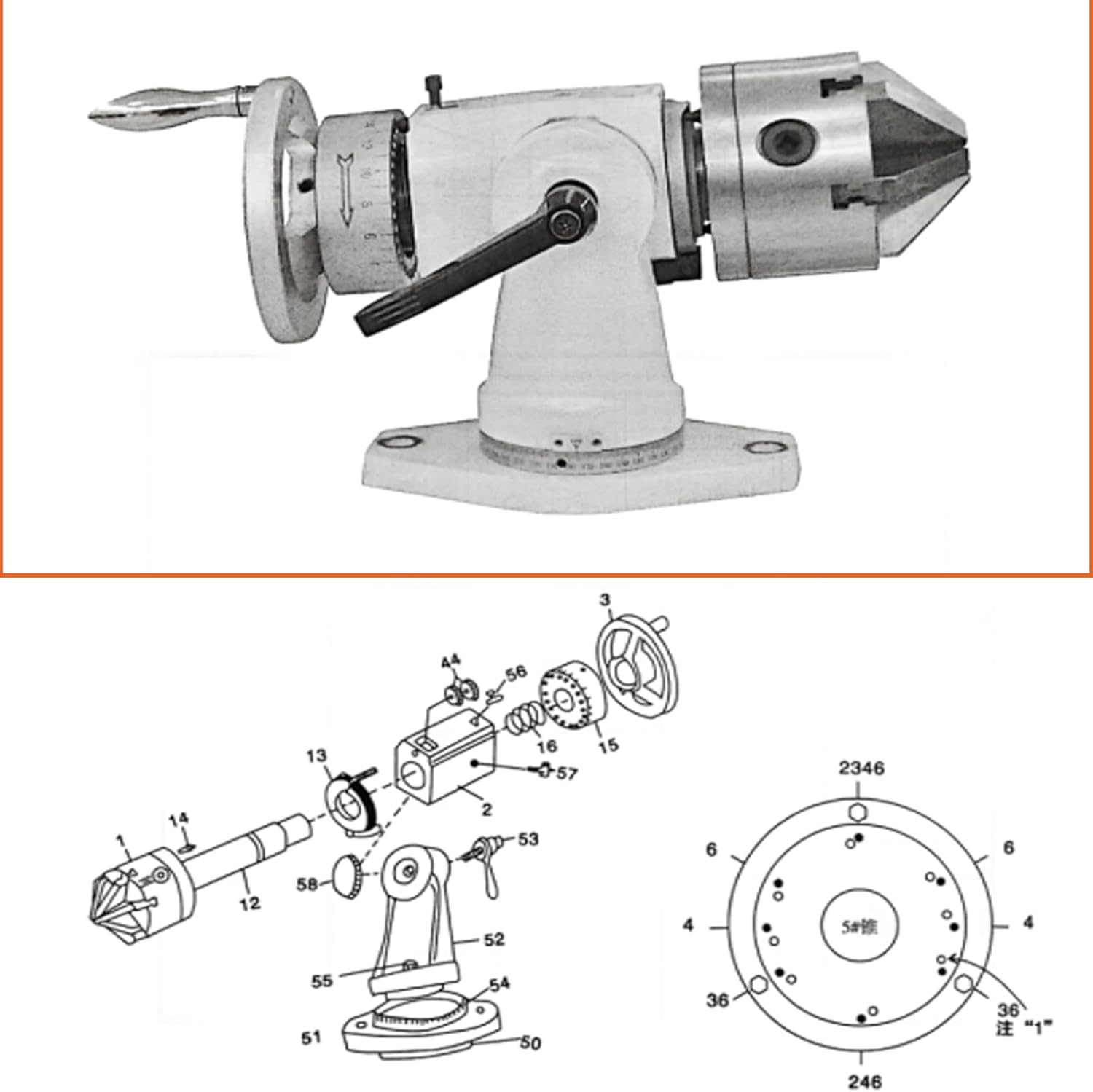

• 【 Wide Application 】 This universal tool grinding machine can precisely grind various types of tools ranging from 2 to 50mm, including drill bits, taps, chamfering cutters, and milling cutters. A 50K multi-functional fixture is included, on which the center positioning holes corresponding to different tools are marked. It is suitable for grinding twist drills, step drills, thread taps, chamfering tools, straight shank drills and Mohs No. 5 taper shank drills.
