Irfora 60 Function Signal Generator High Precision Digital DDS Dual-Channel Function Signal/Arbitrary Form Generator Pulse Signal Source 250MSa/s Frequency Meter VCO Burst AM/PM/FM/Ask/FSK/PSK

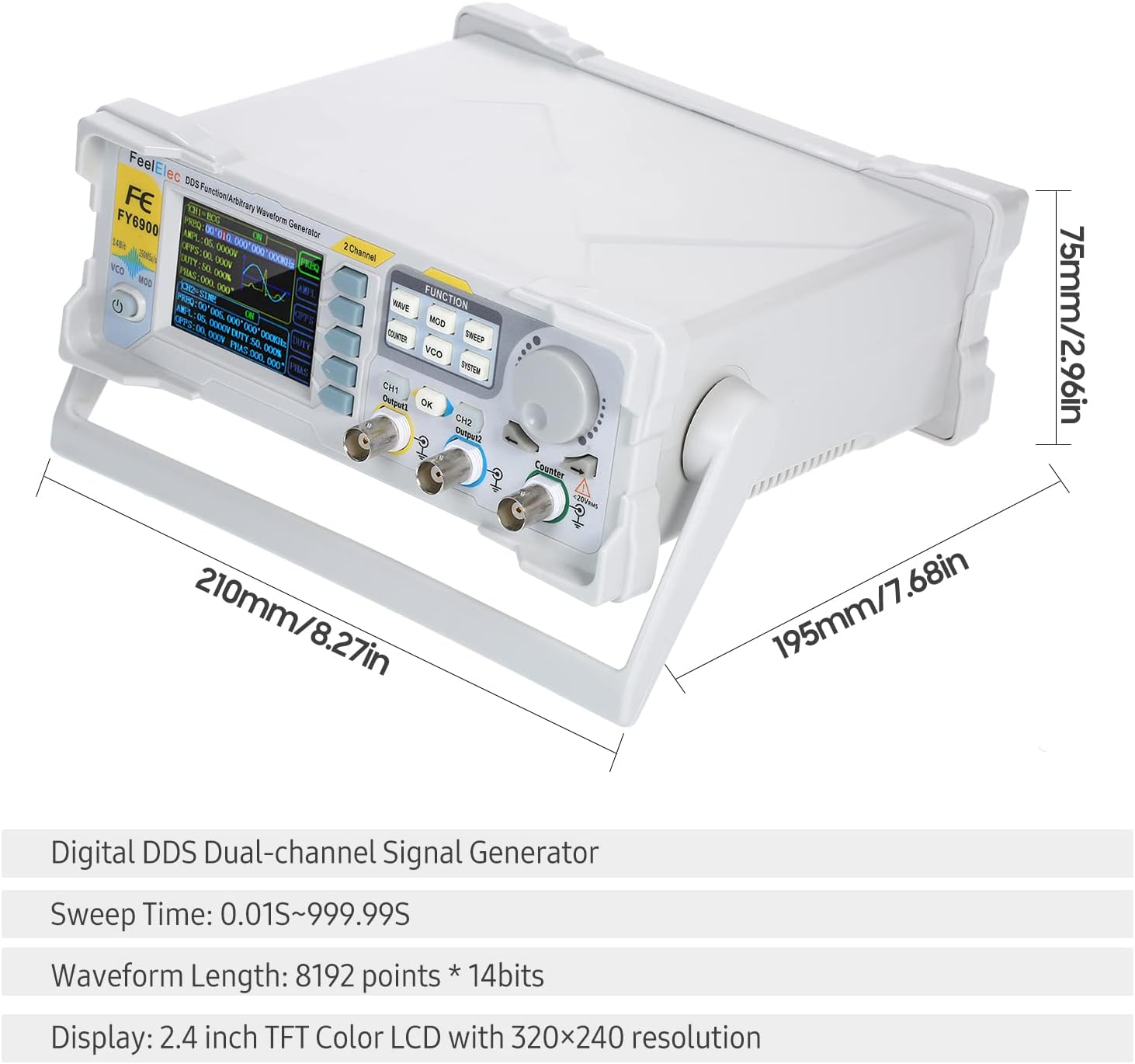

Specification: Plug & Model: EU Plug FY6900-20M / EU Plug FY6900-60M / EU Plug FY6900-100M / US Plug FY6900-20M / US Plug FY6900-60M / US Plug FY6900-100M / AU Plug FY6900-60M (Optional) Material: ABS Sine: 0~20(20M), 0~60(60M), 0~100(100M) Sampling Rate: 250MSa/s(20M,60M), 300MSa/s(100M) Output Amplitude : 1mV～24Vpp(20M,60M), 1mV～25Vpp(100M) Vertical Resolution: 14 bits form Length: 8192 points * 14bits Minimum Pulse Width: 20ns Modulation Type: AM, FM, PM, ASK, FSK, PSK Display: 2.4 inch (320*240), TFT color display Non-Volatile Storage: Can store 64 user-defined arbitrary forms, (8K 14bits) * 64 Power: AC100V~240V Item Size: 210 * 195 * 75mm / 8.27 * 7.68 * 2.96in (L*W*H) Item Weight: 611g / 21.56oz Package Weight: 1065g / 37.51oz Package Size: 27 * 21 * 9.5cm / 10.63 * 8.27 * 3.75in Package List: 1 * DDS Signal Generator 1 * Power Cable 1 * USB Data Cable 1 * BNC-BNC Cable 2 * BNC-Clip Cable

• Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.

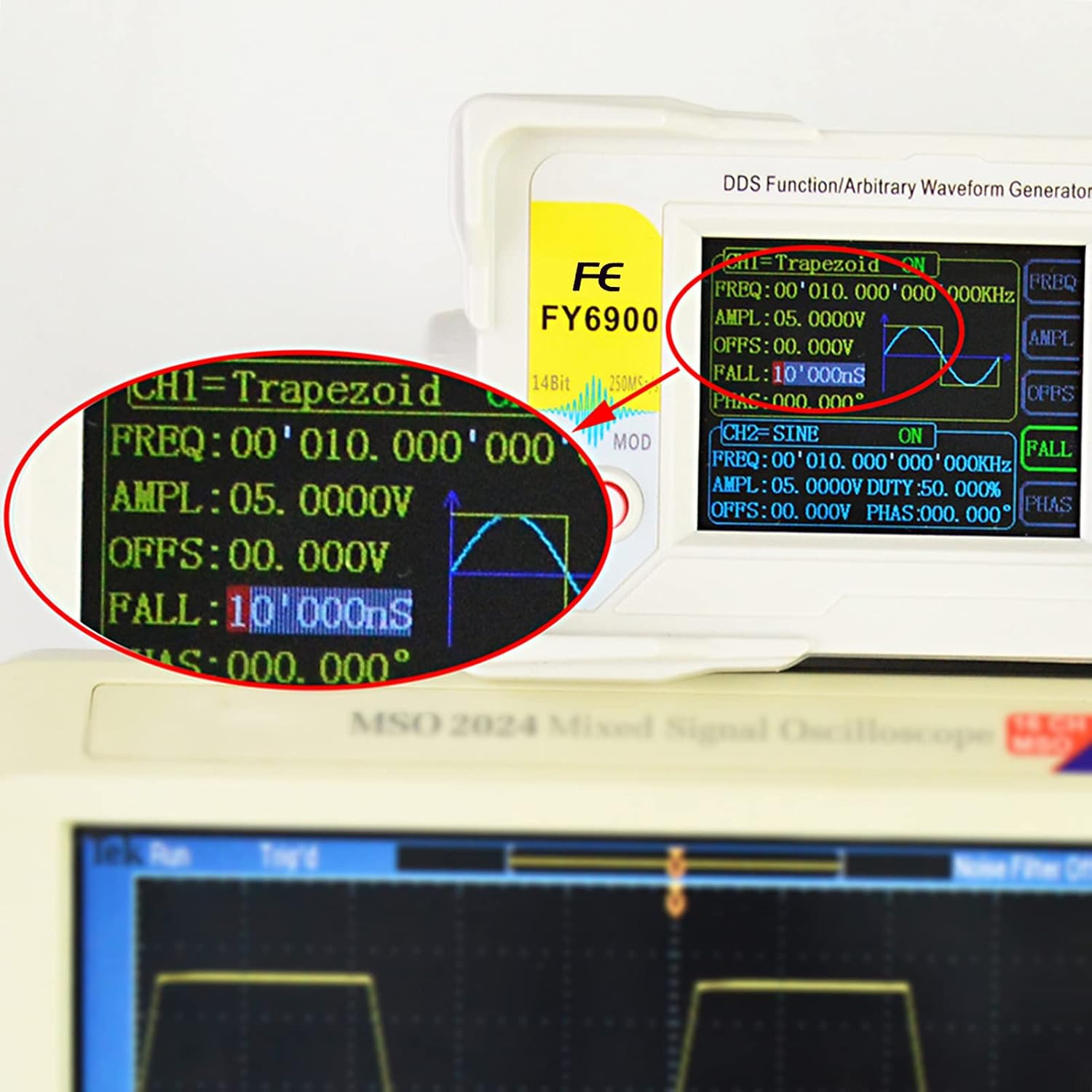

• 2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2.
• Adopt MagicPulse Technology, Low Jitter(RMS)<200ps.
• Enable to store 64 arbitrary form data files, each one of form storage depth 8192 points * 14bits; (The the form storage depth, the more detail the form is saved, and the signal details can be restored with high precision.)
• Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.
